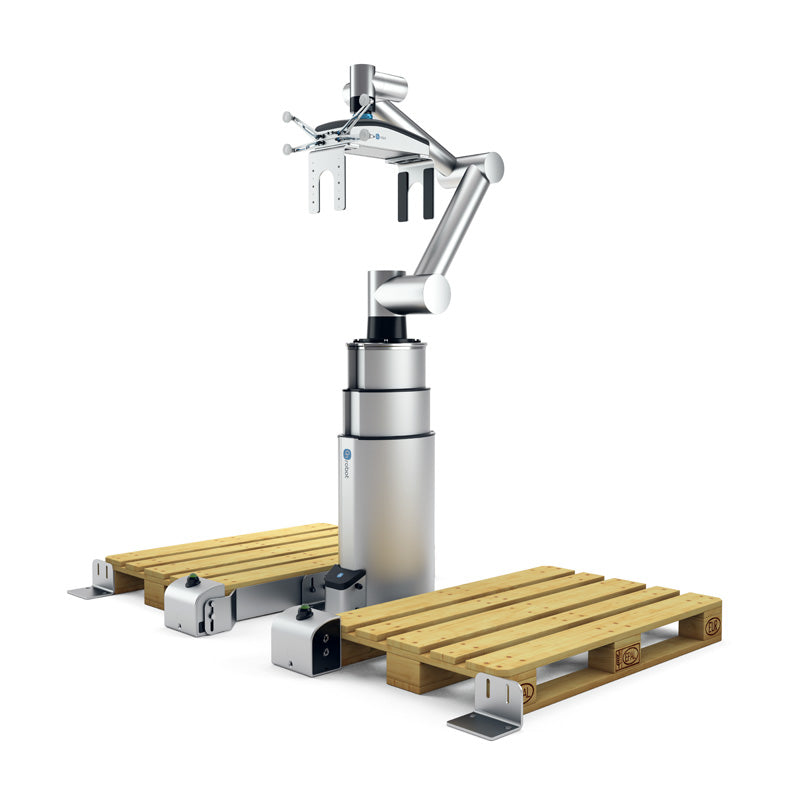

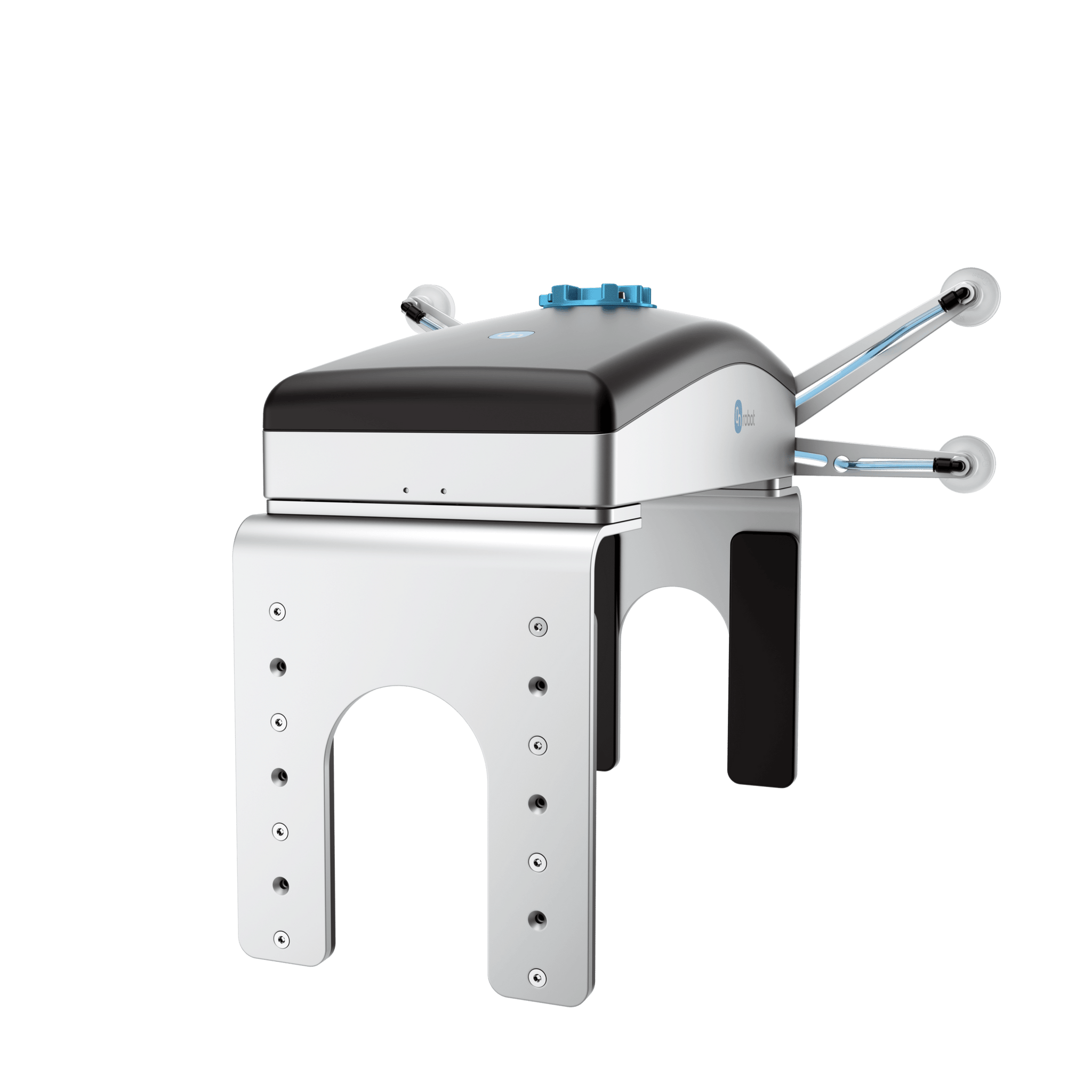

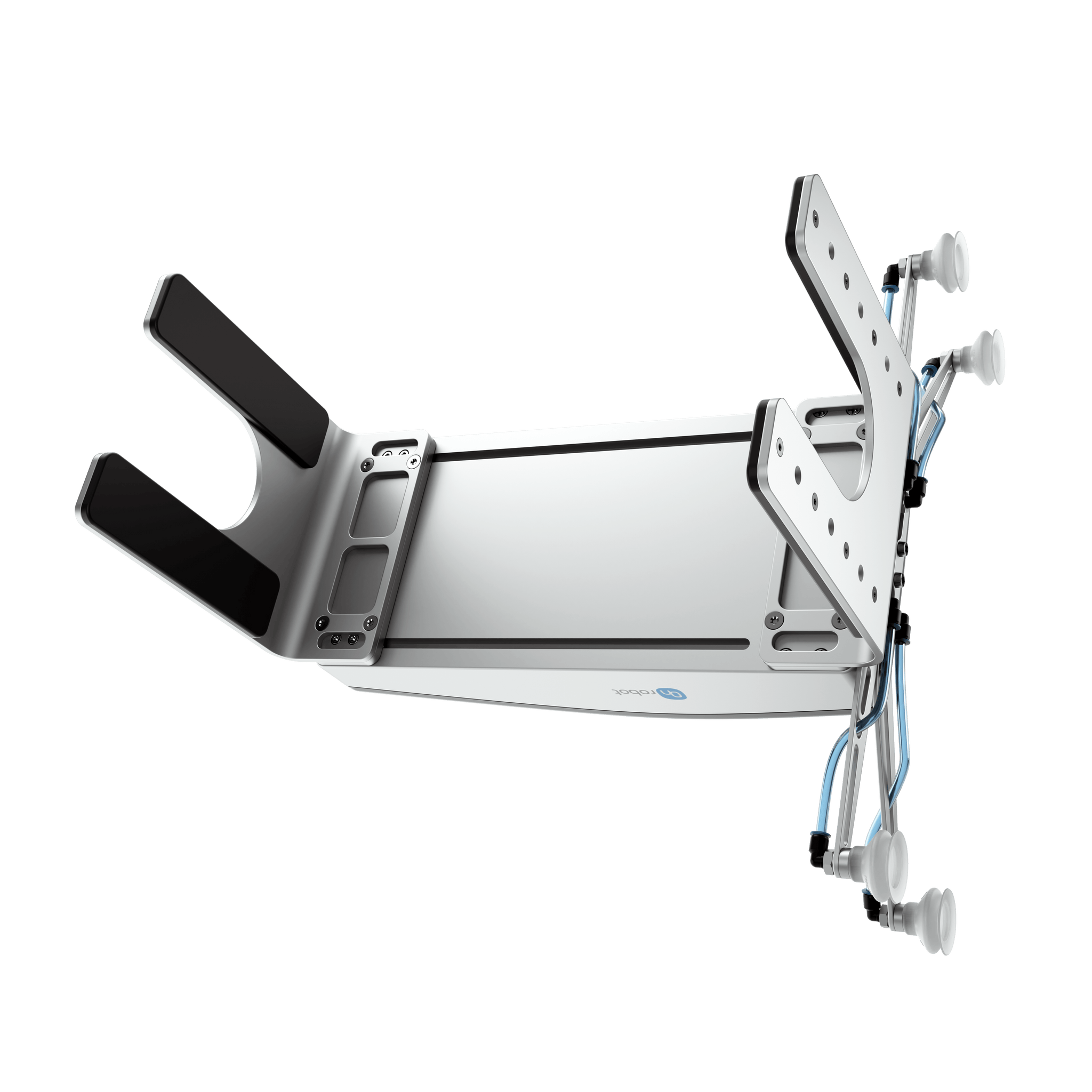

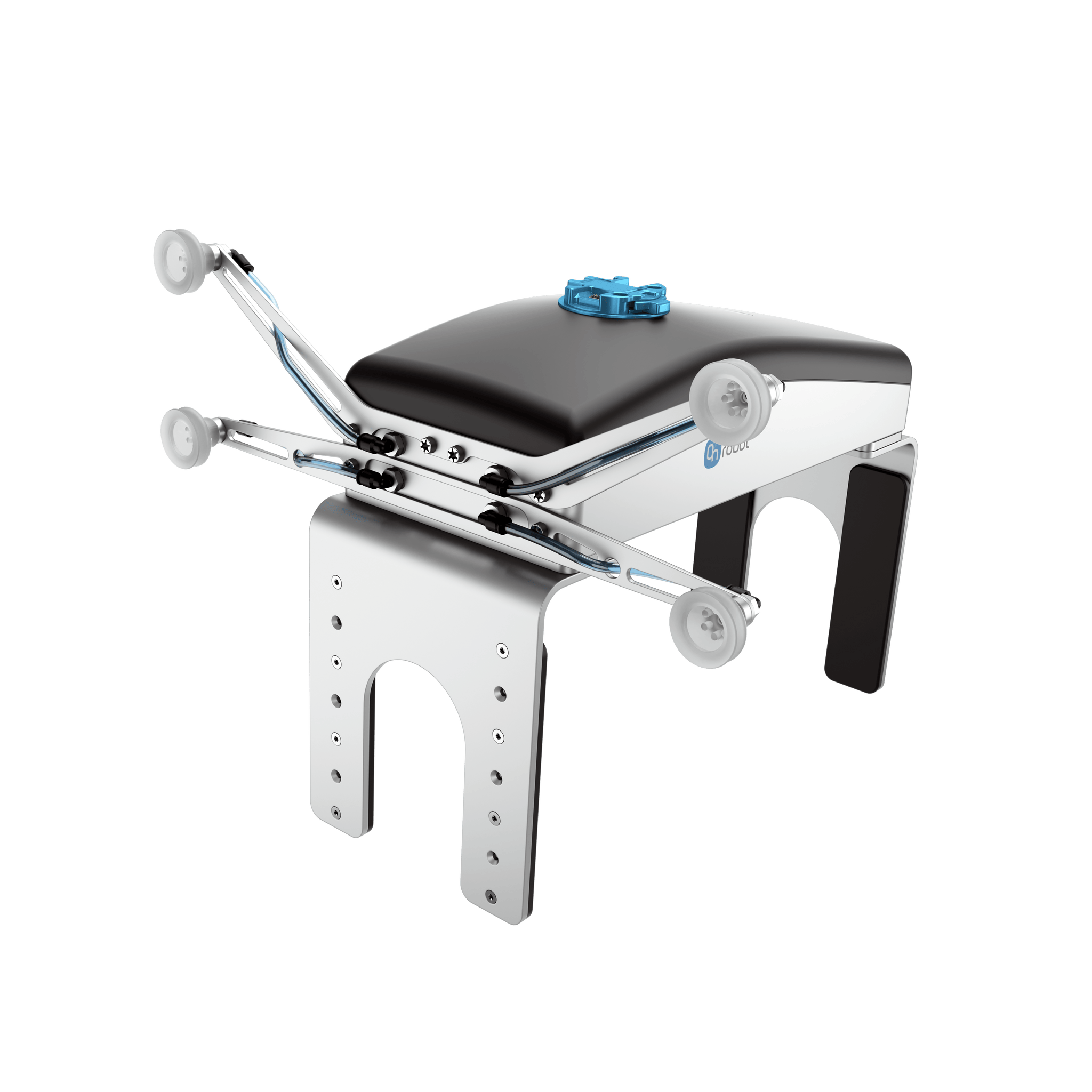

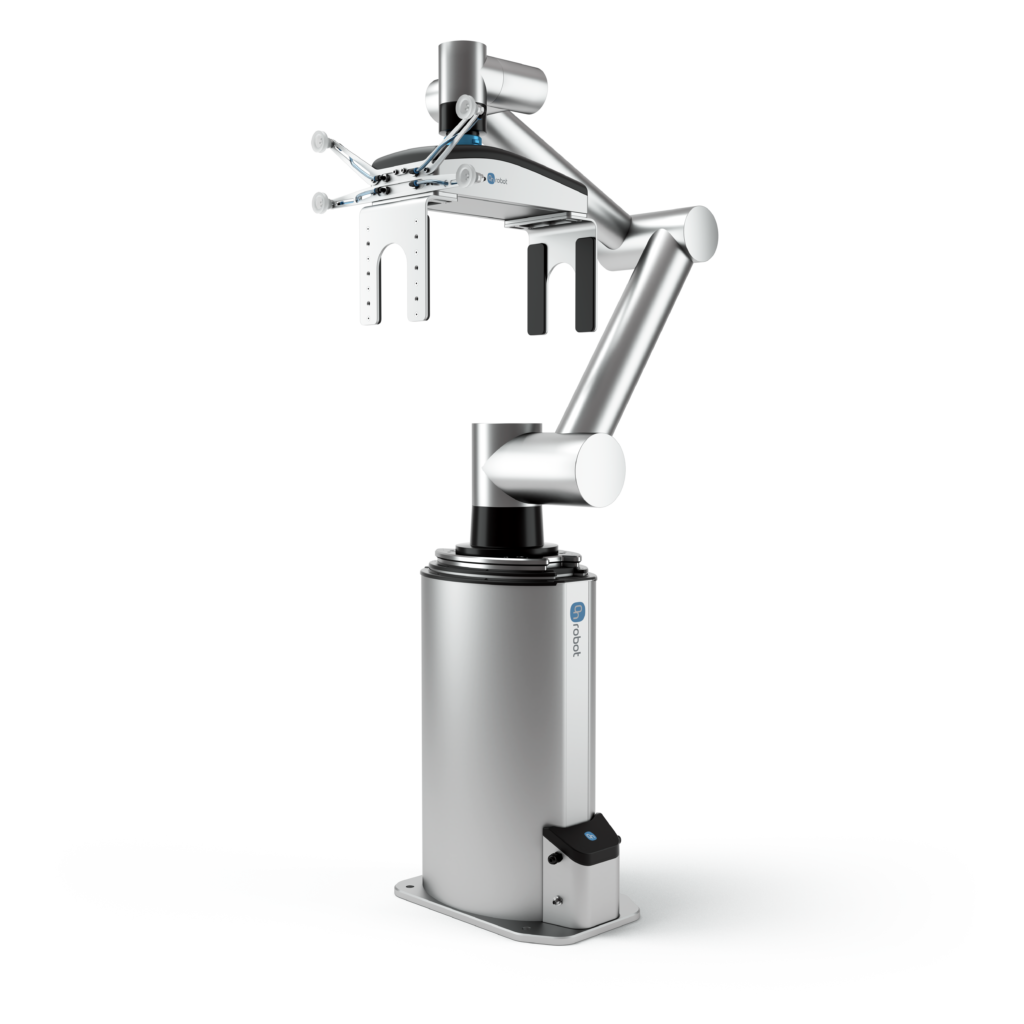

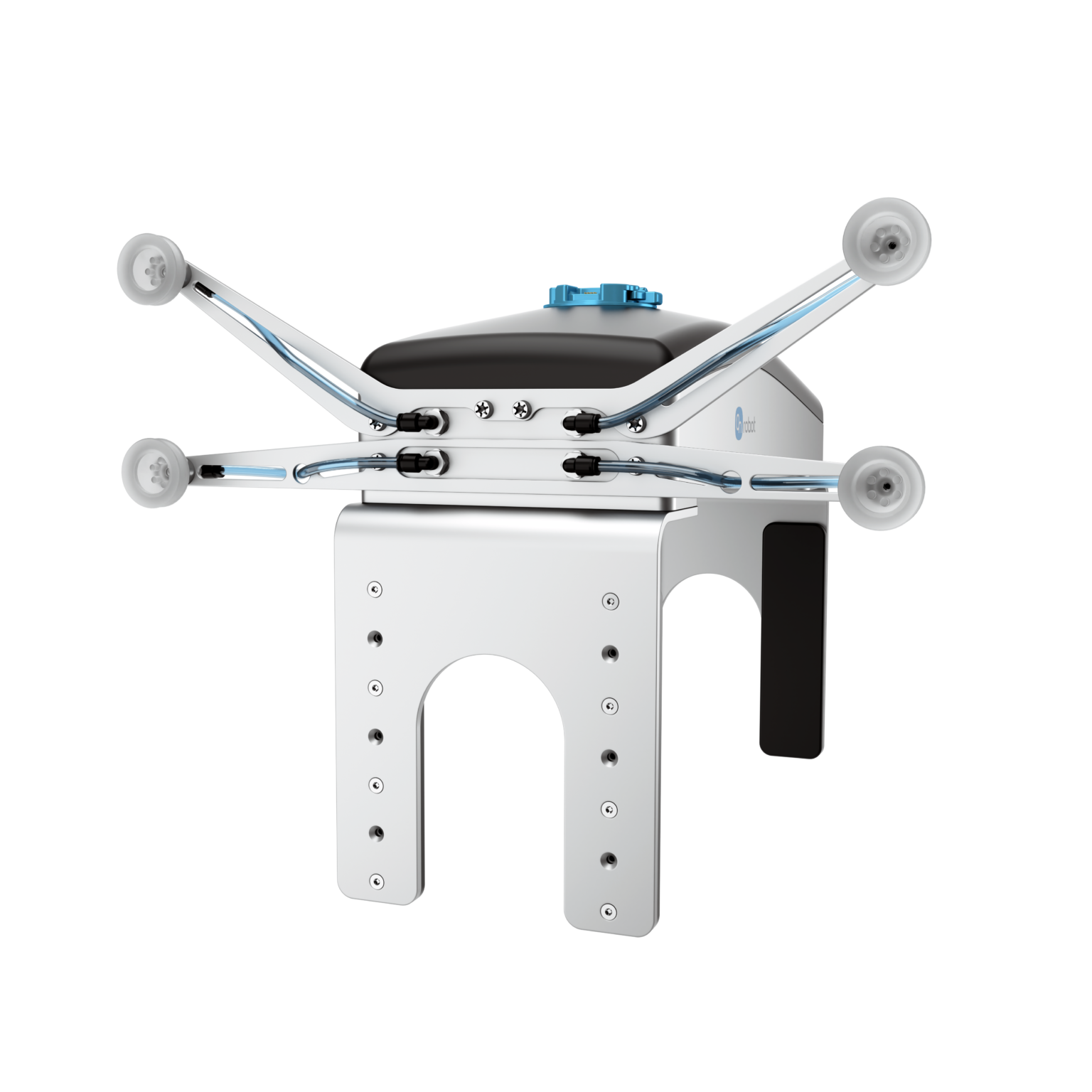

2FGP20 | PALLETIZING GRIPPER

Highly versatile palletizing gripper with wide stroke and customizable arms handles heavy or open boxes, shelf-ready products and other containers that can’t be gripped with vacuum.


• Dimensions (L × W × D) : 400×121.6×188mm | Max. Payload : 20 kg
• Power supply : 20 to 25 VDC - max. 2A - IP54
• Motor type : integrated electric BLDC
• Operating T°C : 5 to 50°C
• Dual gripping technology : parallel + vacuum
• Wide stroke : 260 mm |  Grip width range : 170 to 430mm
• Gripping force : 80 to 400N | Gripping Speed : 16 to 180mm/s
• Gripping time : approx.600ms | Repeatability : 0.5mm
• No compressed air required !
• Integrated vacuum (5–60%) for slip sheets
• Air Flow : up to 12L/min | Vacuum release time : approx. 0.4s
• Lifecysle durability : up to 3000000 cycles

Integrated vacuum gripper handles slip sheets without changing the gripper or requiring other handling method Off-the-shelf gripper saves significant engineering effort and shortens deployment time

Electric gripper offers fast out-of-the-box deployment without the complexity and costs of external air supply

Why OnRobot 2FGP20 ?

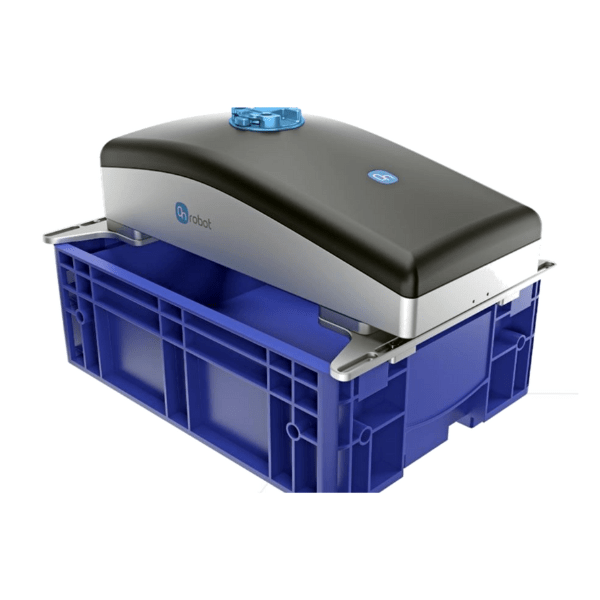

The OnRobot 2FGP20 electric gripper offers a wide stroke and customizable arms to easily handle heavy or open boxes, shelf-ready products, and other containers such as Euro containers (plastic KLT bins) that can’t be handled with traditional vacuum grippers.

Like all OnRobot electric grippers, the 2FGP20 provides fast, out-of-the-box deployment with intuitive programming. An integrated vacuum gripper places slip sheets without changing the gripper or requiring another handling method.

The 2FGP20 gripper has a versatile payload of 20kg, making it ideal for handling food boxes or pouches and tetra-packed items, as well as fast-moving consumer goods such as toiletries, cosmetics, and pharmaceutical products.
